Tank design,in minutes.

Enter the panel counts, click the connections onto the model, approve. The bolt, gasket and panel lists, the A0 drawing and the quote are ready.

Request a demoSee it in the app

app.waterform.fabrikode.com

Panel model1080 mm module
3 × 10802 × 1080

The drawing set in three steps.

What used to be done separately in Excel, in AutoCAD and in a quote file is done here once. It all comes off the same model, so it all agrees.

  1. 01

    Set the tank

    Prismatic or cylindrical. Enter the panel count for length, width and height; half panels are fine. Choose the material, the base and the support.

  2. 02

    Place the connections

    Click the model: inlet, outlet, overflow, drain, level, manway. Each gets its diameter and its number, and knows which panel it sits on.

  3. 03

    Approve and take the outputs

    Approve. The panel, bolt and gasket quantities are calculated at once. The A0 drawing, the DXF, the Excel and the technical quote are ready.

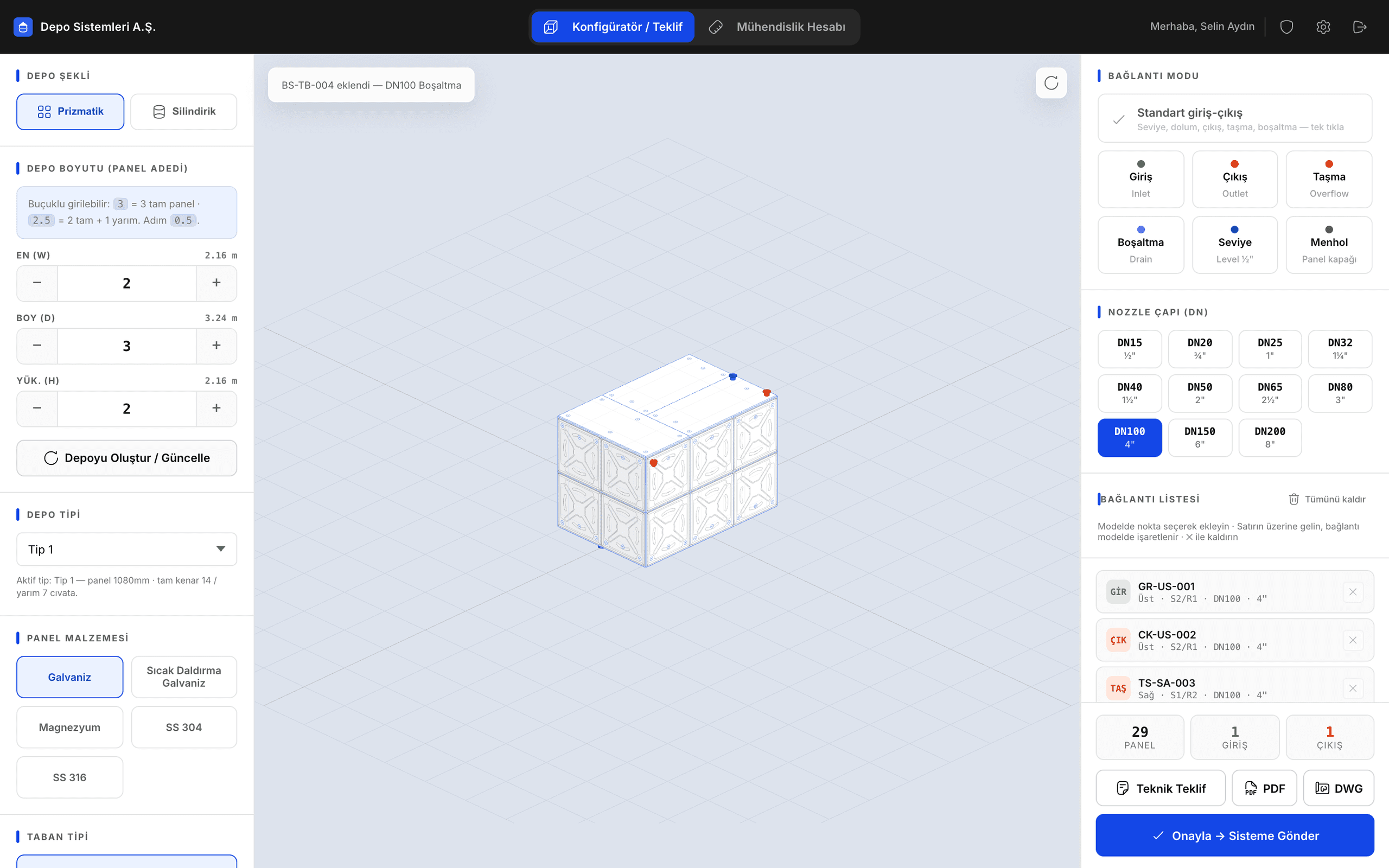

WaterForm configurator: panel counts, panel material, a 3D panel tank with placed connections, and the connection list with references
The configuratorPanels on the left, the tank in the middle, connections on the right. You place a connection by clicking the model, and it is booked against the panel it landed on with its own reference.

The software does the counting.

No estimate, no second spreadsheet. You approve the tank; the software counts the panels, the bolts and the gasket by the metre. The figures below are real, for one ordinary tank.

Panels
26
26 full, 0 half
Grid
3 × 2 × 2
length × width × height
M10×25 bolts
892
sides 812, base 64, roof 16
30×5 side gasket
92.88 m
panel and angle
Volume
15.1 m³
15,117 litres
Note
One sample tank, 3.24 by 2.16 by 2.16 metres. The figures follow the panel type in your own catalogue, so yours will be your own.

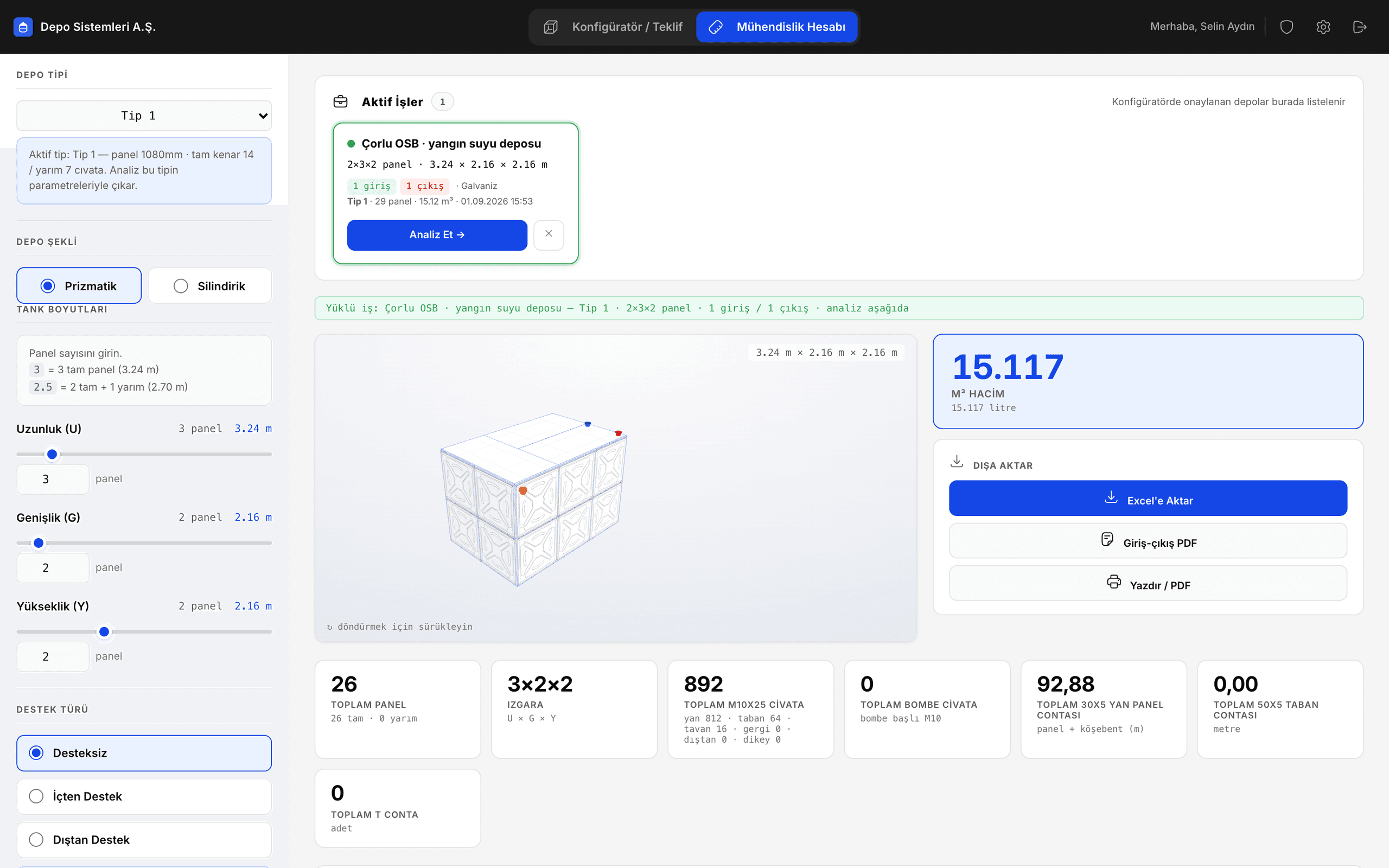

WaterForm engineering calculation: an approved job, the model, volume in cubic metres, and the panel, bolt and gasket totals
The engineering calculationEvery figure on screen with the geometry that produced it, rather than buried in a formula bar.

The document carries your logo.

One approval, four documents. Every one of them with your title block and your logo. Your customer never sees our name.

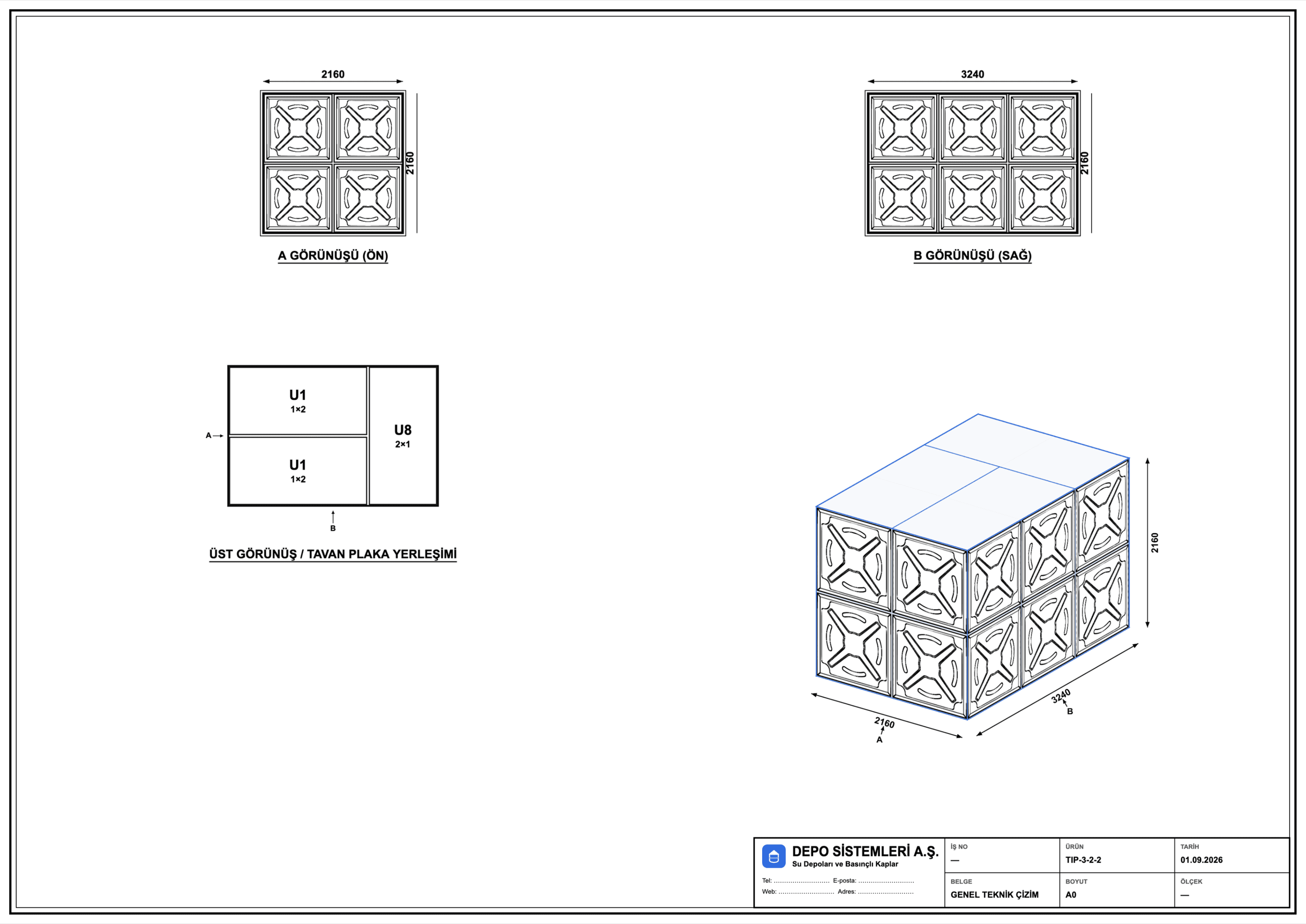

An A0 technical sheet exported from WaterForm: front and side views, roof plate layout, dimensioned isometric, and a company title block
The A0 sheetYour title block in the corner. The crew on site reads your drawing, not ours.
A0 technical drawing
PDF, four pages: front and side views, roof layout, dimensioned isometric
DXF
The drawing, opens in AutoCAD
Excel analysis
The quantities, in the Excel file you already use
Technical quote
Ready the moment the tank is drawn, not a week later

It is your software, with our name nowhere on it.

WaterForm is sold white-label. Your customer sees your drawing, your title block and your logo; there is no Fabrikode mark on anything that leaves your office.

Your brand on every output

Upload a logo and fill in a title block once. Every PDF the application produces carries them from then on.

People and permissions

Add the engineers and the sales people who need it, and decide per person what they can reach. An account is a seat, and a seat is open in one place at a time.

Your own catalogue

Your panel types, their parameters and their parts, so the counts come out against the panel you actually press rather than a generic one.

Quote requests that reach someone

A request raised in the configurator is stored and announced to the addresses you list, either from our mail domain or from your own SMTP server.

Turkish and English

The whole application in both, per person. The output follows the language of whoever produced it.

Your data stays yours

Each company's catalogue, jobs, branding and records are separated at every level. Ask for a full copy of them whenever you want one.

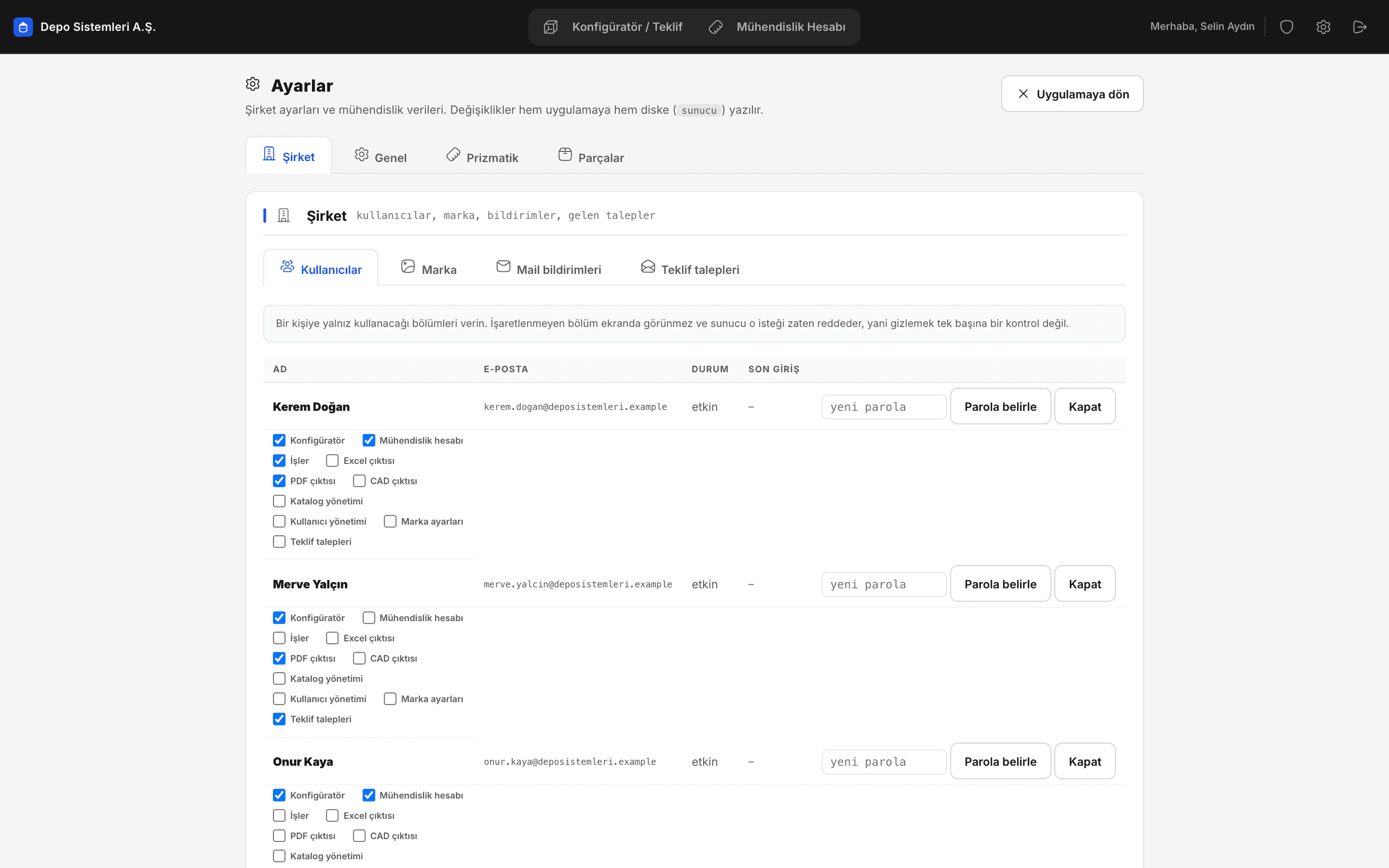

WaterForm settings: company users with their permissions, and the branding section with a logo
Your company inside itYour logo, your title block, your catalogue, your people and what each of them may do.

Already a customer?

Your company opens at app.waterform.fabrikode.com. Sign in with the address we set up for you.

Open WaterForm

See it on your own tank.

Tell us who you are and what you build. We open an account for you, walk through it with you once, and you take it from there. It takes about a minute to ask.

What the demo gives you

Your own account
3 people
Saved jobs
5
Sample catalogue
included
Real PDF output
DEMO stamped
Costs
none

We answer from a person, not an autoresponder, usually within a working day. We do not pass your details to anyone and we do not add you to a mailing list.

About a minute

Request a demo

Six short questions. Press Enter to move on.

Questions.

Does it run in the browser?
Yes. There is nothing to install and nothing to keep updated on a workshop machine. A desktop version that opens the same account is in development; existing customers get the link when it is ready.
Whose name is on the drawings?
Yours. You upload your logo and fill in your title block, and every PDF carries them. Fabrikode's name appears nowhere on anything you send a customer.
Where is our data kept?
On a server in Germany. Every company's catalogue, jobs, branding and records are separated from every other company's at each level of the application, not only on screen.
Can we get our data out?
Yes, as a full copy: your catalogue, your jobs, your settings and your records in a portable package. Ask us and we prepare it.
Can it run on our own server?
For an installation that has to stay inside your own network, we set that up per customer, on its own machine and its own address. Bring it up in the demo and we will tell you what it involves.
How many people can use it?
As many as you buy seats for. An account is one seat, so it is open in one place at a time: signing in somewhere new ends the session that was already open. That is deliberate, and it is what keeps the price per seat honest.
Which tanks does it cover?
Bolted panel tanks, prismatic and cylindrical, on a 1080 mm panel with half panels allowed. Galvanised, hot dip galvanised, magnesium, SS304 and SS316, with the base and support type chosen per tank.
Can we load our own panel types?
Yes. Panel types, their parameters and their parts are your catalogue, so the bolt and gasket counts come out against the panel you actually press.
What does it cost?
It is priced per seat, and we quote after the demo, once we know how many people and what you need. There is no card to enter and nothing starts charging by itself.
